Description
Bundle: MARK IV Hyperion Universal Zoom 8-24 mm eyepiece & Baader Hyperion Zoom Barlow lens 2.25x mag
The set consisting of the MARK IV Hyperion 8-24 mm Universal wide angle Zoom eyepiece (#2454826) and the Hyperion zoom Barlow 2.25x (#2454654) results in combination in a zoom eyepiece with a large focal length range. The set covers all eyepiece focal length from 3.6-24 mm.
This set can only be used on astronomical telescopes; use with (some) spotting scopes is only possible without the Barlow lens.

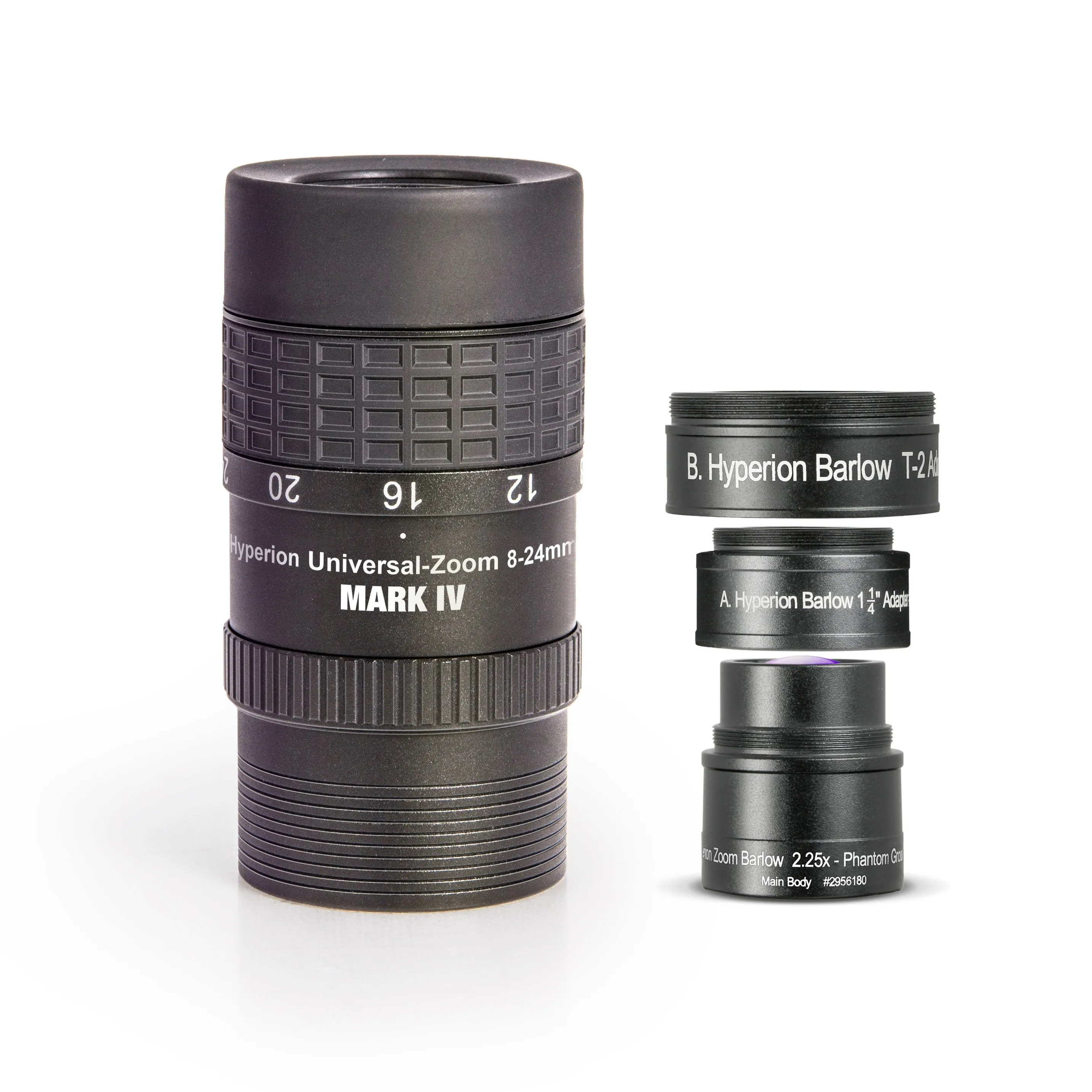

MARK IV Bundle contains the following items:
1x Hyperion Universal Zoom MARK IV, 8-24 mm eyepiece with ClickStop Action (#2454826)
Versatile wide-angle zoom eyepiece with connection option for cameras.
Included Accessories:
- 2 "(left illustration) and 1¼" (right illustration) barrel
- 2" SC thread and 1 3/8" thread for spotting scopes
- Eyepiece holster with belt-strap, which fastens onto many tripod legs just as well, to serve as a bin for all dustcaps that may go astray otherwise
- Height-adjustable eyecup as well as a standard non-foldable and a winged rubber eyecup
- Three dustcaps
1x Hyperion Barlow Lens 2.25x (#2956180)
The Hyperion Barlow lens with two adapters. The Barlow lens with T-2 adapter and Hyperion zoom adapter 1.25 ".
Increases the focal length of your telescope by a factor of 2.25, with docking adapters for camera (T2-system) and zoom eyepiece.
Included Accessories:
- T2 Photo-Adapter
- Zoom-Eyepiece Adapter
Specifications
| GENERAL | |
|---|---|
| MANUFACTURER | Baader Planetarium |
| SKU (#) | 2454827 |
| WEIGHT (NETTO) | 0.555 |
| EYEPIECE SERIES | Hyperion |
| SPECIFICATIONS | |
| FOCAL LENGTH | 3,6 - 24 mm |
| APPARENT FIELD OF VIEW | 48° - 68° |
| AR-COATING | Phantom Coating® Group |
| PARFOCAL EYEPIECES | Yes |
| BARREL SIZE (IN) | 1¼", 2" |
| OPTICAL DESIGN | Modular |
| SPECIALITY | Eyepiece projection: classical |
| EYEPIECE DESIGN | |
| NUMBER OF LENS ELEMENTS | 7 |
| NUMBER OF GROUPS | 4 |
| SLIP PROTECT SAFETY | Safety Kerfs |
| EYEPIECE BODY ABOVE REFERENCE PLANE (MM) | 81 mm |
| LENGTH OF 1¼" BARREL (MM) | 24,5 mm |
| LENGTH OF 2" BARREL (MM) | 27 mm |
| OUTER DIAMETER | 55 mm |
| CONNECTIONS | |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, M43 |
| INNER CONNECTION (LENS SIDED) | Thread, 1 3/8", 2" (50,8mm) |
| OUTER CONNECTION (LENS SIDED) | Barrel, 1¼", 2" (50,8mm) |
| CAMERA THREAD | M43 |
| THREADED FOR FILTERS | Yes |
| INCLUDED ITEMS | |
| DUSTCAPS | 1¼" dustcap (31,8mm), 2" dustcap (45mm), 2" dustcap (46.5mm - fits over eyecup) |
| EYECUPS | large height adjustable eyecup (M43), small eyecup (M43), winged eyecup (M43) |
